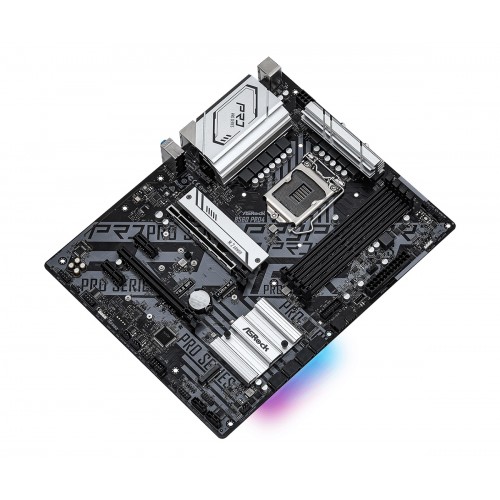

ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
0.00৳
- Brand: ASRock
- Model: ASRock B560 Pro4
- Supported CPU: Intel 10th and 11th Processors
- Supported Memory: DDR4 Up To up to 4800+(OC)
- Max Memory: 128GB
- Graphics Output: HDMI & Display Port
Out of stock
| Supported CPU |
Supports Intel 10th Gen Core Processors Supports Intel 11th Gen Core Processors Digi Power design 8 Power Phase design Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel B560 |
| BIOS |
128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake-up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Form Factor |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Solid Capacitor design |
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Supported Sockets | LGA1200 |
| Graphics |
11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) **Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Graphics specifications may vary between CPU types. |
| Type | Dual Channel DDR4 Memory Technology |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory |
11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Maximum Memory | 128GB |
| Memory MHz | Up to 4800+(OC) |
| Storage Interface |
6 x SATA3 6.0 Gb/s Connectors Support Intel® Rapid Storage Technology 18 NCQ AHCI and Hot Plug |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
| PCI |
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))* 10th Gen Intel® Core™ Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| M.2 Socket |
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** **If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. **Supports Intel® Optane™ Technology (M2_2) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| HDMI | 1 x HDMI Port |
| USB (s) |
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| LAN Port (s) |
Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio |
| Internal I/O Ports |

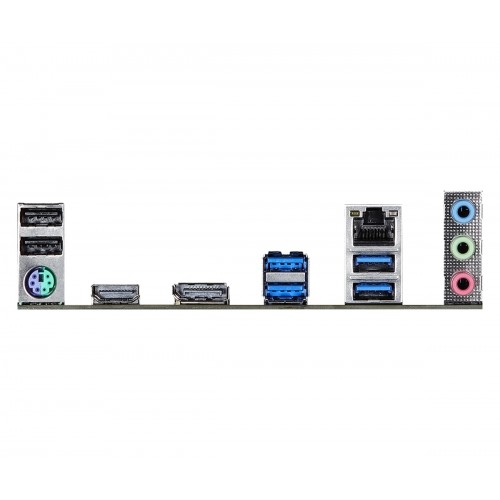

3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Display Port | 1 x DisplayPort 1.4 |
| LAN Chipset | Giga PHY Intel® I219V |
| LAN Speed (Mbps) | Gigabit LAN 10/100/1000 Mb/s |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| Bios Type | 128Mb AMI UEFI Legal BIOS |
| Bios Model | AMI UEFI Legal BIOS |
| Bios Version | ACPI 6.0 |
| Others |
Connector - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash **These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCPLL, VCCIO Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Manufacturing Warranty | 03 Years |
ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
ASRock B560 Pro4 Motherboard supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, 8 Phase Power Design, DDR4 4800MHz (OC), 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio, Graphics Output Options: HDMI, DisplayPort, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This Graphics card comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi, 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3), 8 x USB 3.2 Gen1 (4 x Rear, 4 x Front), 4 x USB 2.0 (2 x Rear, 2 x Front), 1 x Front USB 3.2 Gen1 Type-C and Intel Gigabit LAN. Here, Intel LAN provides the best throughput performance, lower CPU utilization, and enhanced stability and is able to deliver the ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game. This motherboard comes with Dual Graphics Outputs – HDMI + DisplayPort combo, you have more graphics output options now. And also this motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry, And the USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next-generation reversible USB design to the front panel of the computer case.
What are the ASRock B560 Pro4 10th and 11th Gen ATX Motherboard Price In Bangladesh?
The latest price of the ASRock B560 Pro4 10th and 11th Gen ATX Motherboard is 13,800৳ in Bangladesh. Order online OR visit our showrooms to buy the ASRock B560 Pro4 Motherboard at the best price in BD.
