ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
13,000.00৳
- Brand: ASRock
- Model: ASRock B660M Phantom Gaming 4
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: DDR4 Up To up to 4800+(OC)
- Max Memory: 128GB
- Graphics Output: HDMI & Display Port
Product Specifications
Basic Information
| Supported CPU | Supports Intel 12th Gen Core Processors Digi Power design 8 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B660 |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake-up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio |
CPU
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Supported Sockets | LGA1700 |
Graphics
| Graphics | Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports **Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
Memory
| Type | Dual Channel DDR4 Memory Technology |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 **Supports DDR4 3200 natively. |
| Maximum Memory | 128GB |
| Memory MHz | Up to 5333+(OC) |
Storage
| Storage Interface | 4 x SATA3 6.0 Gb/s Connectors |
| SSD Expansion Slot | 2 x SSD Expansion Slot |
Expansion Slots
| PCI | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 3.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) Supports AMD CrossFire™ |
| M.2 Socket | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Supports Intel® Optane™ Memory H Series (M2_2 only) Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |

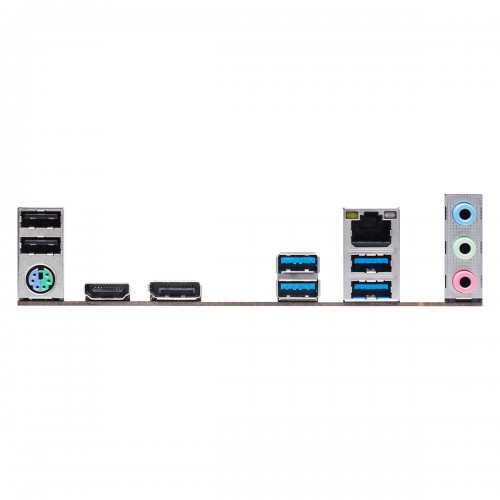

Connector & Ports
| HDMI | 1 x HDMI Port |
| USB (s) | 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) |
| LAN Port (s) | Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports UEFI PXE |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio |
| Internal I/O Ports | 3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Display Port | 1 x DisplayPort 1.4 |
Network & Connectivity
| LAN Chipset | Giga PHY Intel® I219V |
| LAN Speed (Mbps) | Gigabit LAN 10/100/1000 Mb/s |
Technical Info
| CrossFire Support | Yes |
| Raid Support | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design |
| Bios Type | 128Mb AMI UEFI Legal BIOS |
| Bios Model | AMI UEFI Legal BIOS |
| Bios Version | ACPI 6.0 |
Additional Info
| Others | Connector - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderboltâ„¢ AIC Connector (5-pin) (Supports ASRock Thunderboltâ„¢ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if a 3-pin or 4-pin fan is in use. Software and UEFI Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty Information
| Manufacturing Warranty | 03 Years |
Description
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
The ASRock B660M Phantom Gaming 4 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 9 Phase Dr MOS Power Design and it supports DDR4 5000MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
What is the ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard Price In Bangladesh?
The latest price of the ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard is 13,000৳ in Bangladesh. Order online OR visit our showrooms to buy the ASRock B660M Phantom Gaming 4 Motherboard at the best price in BD.
