Sold out
ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard
0.00৳
- Brand: ASRock
- Model: ASRock H370M-HDV
- Supported CPU: Intel 8th and 9th Gen Processors
- Supported Memory: DDR4 Up To 2666
- Max Memory: 68GB
- Graphics Output: HDMI, VGA & DVI
Out of stock
Product Specifications
Basic Information
| Supported CPU | Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Supports CPU up to 95W 4 Power Phase design Supports Intel Turbo Boost 2.0 Technology |
| Chipset | Intel H370 |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support DRAM, PCH 1.05V Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm Solid Capacitor design |
| Audio | 7.1 CH HD Audio (Realtek 887/897 Audio Codec) Supports Surge Protection |
CPU
| Chipset Brand | Intel |
| Chipset | Intel H370 |
| Supported Sockets | Socket 1151 |
Graphics
| Graphics | Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
Memory
| Type | DDR4 |
| Slots | 2 x DIMM Slots |
| Supported Memory | DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Dual Channel DDR4 Memory Technology |
| Maximum Memory | 64GB |
Expansion Slots
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
Connector & Ports
| HDMI | 1 x HDMI Port |
| USB (s) | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug |
| Audio | 1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone |

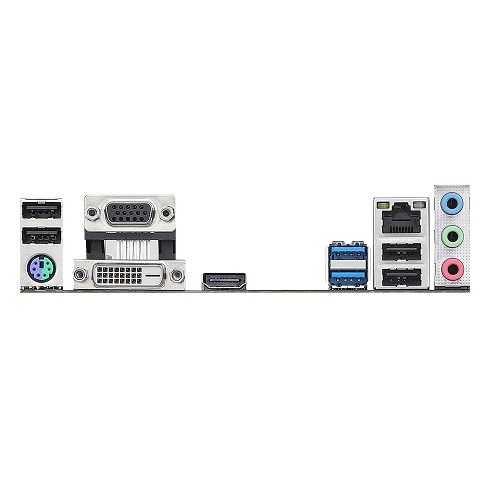

| Internal I/O Ports | 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| TPM (Trusted Platform Module ) | 1 x TPM Header |
Warranty Information
| Manufacturing Warranty | 03 Years warranty |
Description
ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard
ASRock H310CM-HDV Motherboard is compatible with 9th and 8th Gen Intel Core Processors (Socket 1151). It supports DDR4 2666. Graphics Output Options are DVI-D, D-Sub, and HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). It has Full Spike Protection.
What is the ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard Price In Bangladesh?
The latest price of the ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard is 6,700৳ in Bangladesh. Order online OR visit our showrooms to buy the ASRock H370M-HDV Motherboard at the best price in BD.
