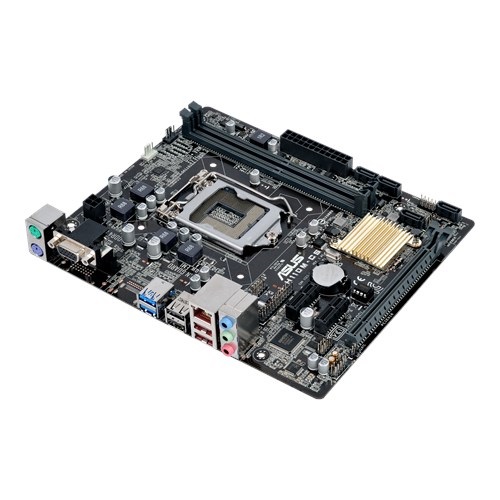

Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
0.00৳
Key Features
- Model: H110M-CS
- CPU: 7th/6th Generation Intel Processors
- Chipset: Intel® H110
- 2 x DDR4 DIMM
- 3 x PCI Express slot
Out of stock
| Supported CPU |
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor |
uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| Audio |
1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Graphics |
VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Type | DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| Slots | 2 x DIMM |
| Supported Memory |
Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Maximum Memory | The maximum memory frequency supported varies by processor |
| PCI |
1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| HDMI |
Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| LAN Port (s) | Realtek® RTL8111H |
| Audio |
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| Internal I/O Ports |
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis intrusion header |
| TPM (Trusted Platform Module ) | 1 x 14-1 pin TPM connector |
| Manufacturing Warranty | 03 Years |
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
Asus H110M-CS 7th & 6th gen supreme motherboard compatible with Intel (Socket 1151) i3, i5 & i7 processor. This ultrafast dual channel max DDR4 supported maximum 32GB memory and it has the capability of fast SATA supported storage and Advanced hardware safeguards for all-round protection. If we consider the graphics of this LED lighting board, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for VGA output. This Media-acclaimed UEFI BIOS with EZ Flash 3 board has Fan Xpert advanced fan controls for ultimate cooling and silent performance and Easy PC DIY with safe motherboard-mounting.
Purchase quality Asus budget mainboard for your desktop to have optimum performance. Shop online from Star Tech with the best deal and have the delivery all over Bangladesh.
What Is The Asus H110M-CS 7th/6th Gen micro-ATX Motherboard Price In Bangladesh?
The latest price of the Asus H110M-CS 7th/6th Gen micro-ATX Motherboard is Up Coming in Bangladesh. Order online OR visit our showrooms to buy the Asus H110M-CS 7th/6th Gen micro-ATX Motherboard at the best price in BD.
