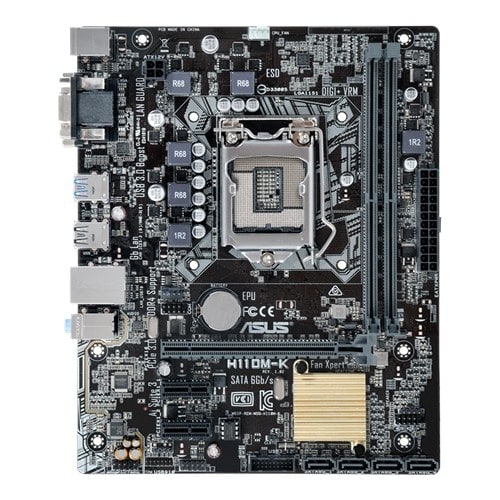

ASUS H110M-K Intel 6th and 7th Gen Micro-ATX Motherboard
8,600.00৳
- Brand: ASUS
- Model: ASUS H110M-K
- Supported CPU: Intel 6th and 7th Gen Processors
- Supported Memory: Up to DDR4 2400
- Max Memory: 64GB
Product Specifications
Basic Information
| Supported CPU |
Supports Intel 6th Gen Core i7, i5, i3 & Pentium Processors Supports Intel 7th Gen Core i7, i5, i3 & Pentium Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 ** The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel H110 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor |
mATX Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm ) |
| Audio |
Realtek ALC887/897 8-Channel High Definition Audio CODEC *1 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors |
CPU
| Chipset Brand | Intel |
| Chipset | H110 |
| Supported Sockets | LGA1151 |
Graphics
| Graphics |
Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
Memory
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory |
DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPU * The maximum memory frequency supported varies by processor. ** Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Maximum Memory | Max. 32GB |
| Memory MHz | Up to 2400MHz |
Storage
| Storage Interface | 4 x SATA 6Gb/s port(s), gray |
Expansion Slots
| PCI |
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
Connector & Ports
| USB (s) |
Intel H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board) Intel H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board) |
| LAN Port (s) | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek ALC887/897 8-Channel High Definition Audio CODEC *1 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors |
| Internal I/O Ports |
1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector |
| Display Port |
1 x DVI-D and 1 x DVI-D |
Network & Connectivity
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | 1 x Gigabit |
Technical Info
| Form Factor |
mATX Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm ) |
| Bios Type | 128 Mb Flash ROM |
| Bios Model |
UEFI AMI BIOS, ASUS EZ Flash 3 CrashFree BIOS 3 |
Additional Info
| Others |
Special Features ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - Premium components provide better power efficiency - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - USB 3.0 Boost - Disk Unlocker - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Media Streamer Accessories User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
Warranty Information
| Manufacturing Warranty | 03 Years |
Description
ASUS H110M-K Intel 6th and 7th Gen Micro-ATX Motherboard
ASUS H110M-K Motherboard is an exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices. ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability. Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that’s three times (3X) longer than ordinary panels. Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
ASUS H110M-K Features
Great-value micro-ATX H110 with 5X Protection II for dependable stability, LED-illuminated audio shielding and DDR4 support.
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR4 memory compatibility
- Epic gaming audio with LED-illuminated shielding
- Media-acclaimed UEFI BIOS with EZ Flash 3
What is the ASUS H110M-K Intel 6th and 7th Gen Micro-ATX Motherboard Price In Bangladesh?
The latest price of the ASUS H110M-K Intel 6th and 7th Gen Micro-ATX Motherboard is 8,600৳ in Bangladesh. Order online OR visit our showrooms to buy the ASUS H110M-K Intel 6th and 7th Gen Micro-ATX Motherboard at the best price in BD.
