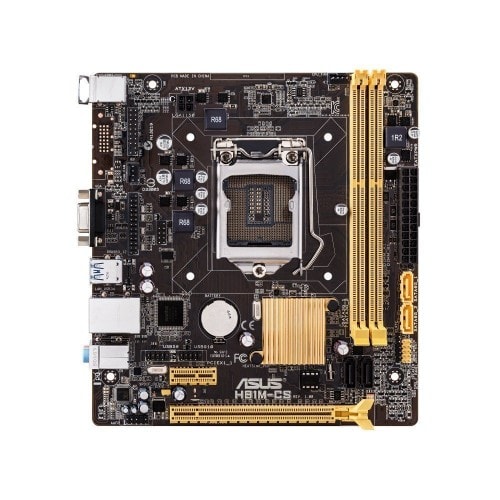

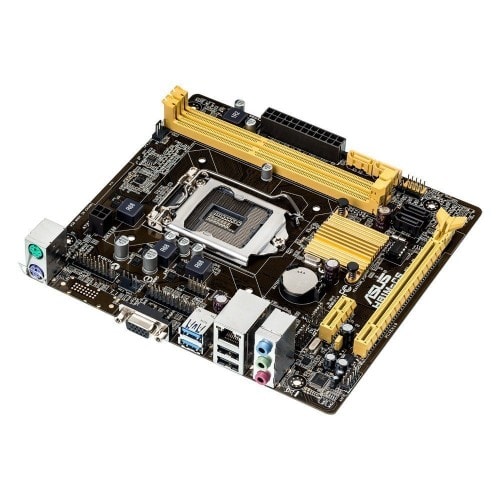

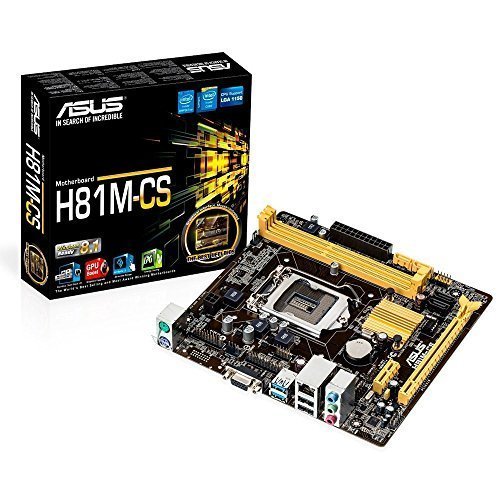

ASUS H81M-CS Intel 4th Gen uATX Motherboard
- Brand: ASUS
- Model: ASUS H81M-CS
- Supported CPU: Intel 4th Gen Processors
- Supported Memory: Up to DDR3 1600MHz
- Max Memory: 16GB
| Supported CPU | Intel 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 ** The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel H81 |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) |
| Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Chipset Brand | Intel |
| Chipset | H81 |
| Supported Sockets | LGA1150 |
| Graphics | Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) |
| Type | DDR3 |
| Slots | 2 x DIMM |
| Supported Memory | DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) ** Hyper DIMM support is subject to the physical characteristics of individual CPUs. ** Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. |
| Maximum Memory | Max. 16GB |
| Memory MHz | Up to 1600MHz |
| Storage Interface | Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology * |
| PCI | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 |
| HDMI | No HDMI 1 x D-Sub (VGA) |
| USB (s) | Intel H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| LAN Port (s) | Realtek 8111GR, 1 x Gigabit LAN Controller(s) |
| Audio | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Chassis Intrusion connector(s) |
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | 1 x Gigabit |
| Form Factor | uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) |
| Bios Type | 64 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS, |
| Others | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Accessories User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) |
| Manufacturing Warranty | 03 Years |
ASUS H81M-CS Intel 4th Gen uATX Motherboard
The new ASUS H81M-CS 4th Gen Intel Chipset Motherboard supports Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors, Intel 22 nm CPU, Intel Turbo Boost Technology 2.0 (The Intel Turbo Boost Technology 2.0 support depends on the CPU types.). In this motherboard, Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts by which you can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. It is featured with 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture and support Intel Extreme Memory Profile (XMP). This motherboard comes with GPU Boost, it accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use. In this motherboard, the ASUS Boot Setting provides better flexibility in customizing your PC’s startup process and you can shorten system boot-up time to 2-seconds for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Here, The ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, that allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This ASUS H81M-CS 4th Gen Intel Motherboard has 03 years warranty
ASUS H81M-CS Features
- New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
- GPU Boost – Go to the limit with iGPU level up!
- CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
- EPU – All-round energy efficiency and detailed CPU wattage settings
- AI Suite 3: One-stop access to innovative ASUS features
