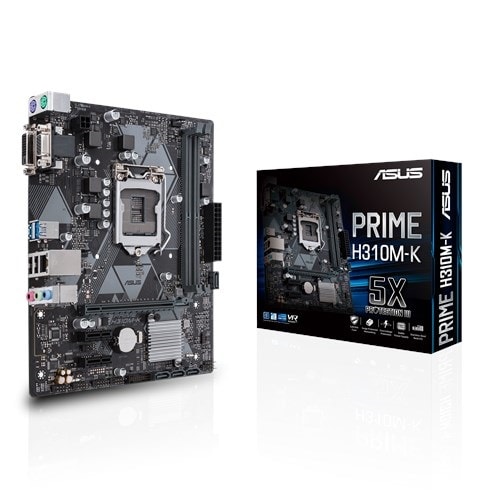

Asus PRIME H310M-K R2.0 8th and 9th Gen mATX Motherboard
- Brand: ASUS
- Model: ASUS PRIME H310M-K
- Supported CPU: Intel 8th and 9th Gen Processors
- Supported Memory: Up to DDR4 2666
- Max Memory: 32GB
| Supported CPU | Intel Socket 1151 for 8th/9th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types |
| Chipset | Intel H310 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC * - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Chipset Brand | Intel |
| Chipset | H310 |
| Supported Sockets | LGA1151 |
| Graphics | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: DVI-D/D-Sub ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 32GB |
| Memory MHz | Up to 2666 |
| Storage Interface | 4 x SATA 6Gb/s port(s), gray, |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| USB (s) | Intel H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| LAN Port (s) | Realtek® RTL8111H, 1 x Gigabit LAN |
| Audio | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Display Port | 1 x DVI-D and 1 x D-Sub |
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | RTL8111H |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Bios Type | 128 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
| Others | Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 4 Phase digital power design ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM |
| Manufacturing Warranty | 03 Years |
Asus PRIME H310M-K R2.0 8th and 9th Gen mATX Motherboard
ASUS Prime H310M-K motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We’ve melded all the good stuff that’s packed into the latest 8th Generation Intel® Coreâ„¢ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordable. Asus OptiMan preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload – whether you’re gaming or running intensive applications. Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS. Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.
Asus PRIME H310M-K Features
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-around protection.
