ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
Click to enlarge
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard
ASUS

ASUS PRIME H610M-A D4 Intel 12th Gen mATX Motherboard

0.00৳

  • Brand: ASUS
  • Model: ASUS PRIME H610M-A D4
  • Supported CPU: Intel 12th Gen Processors
  • Supported Memory: Up to DDR4 3200Mhz
  • Max Memory: 64GB

Out of stock

Add to compare
Add to wishlist
Category:
Product Specifications
Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0
Supports Intel Turbo Boost Max Technology 3.0
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
CPU
Chipset Brand Intel
Chipset H610
Supported Sockets LGA1700
Graphics
Graphics 1 x DisplayPort**
1 x D-Sub port
1 x HDMI port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules
Maximum Memory Max. 64GB
Memory MHz Up to 3200
Storage
Storage Interface 4 x SATA 6Gb/s ports
SSD Expansion Slot 2 x SSD Expansion Slot
Expansion Slots
PCI Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot

Intel H610 Chipset
1 x PCIe 3.0 x1 slot
M.2 Socket M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
Connector & Ports
HDMI 1 x HDMI
and
1 x D-Sub

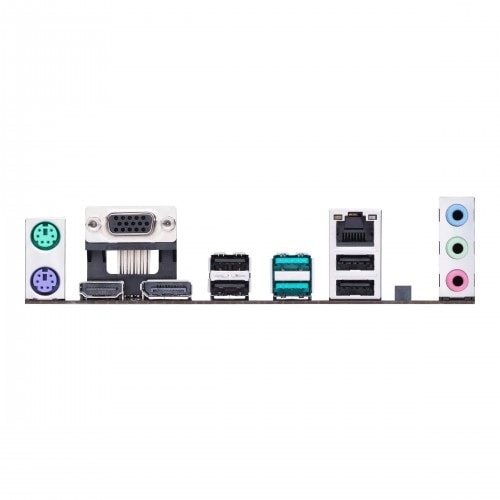

USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s) 1 x Intel® 1Gb Ethernet
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Display Port 1 x Display Port
Network & Connectivity
LAN Chipset Intel
LAN Speed (Mbps) 1Gb
WiFi V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Technical Info
Form Factor mATX Form Factor

9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Bios Type 128 Mb Flash ROM,
Bios Model UEFI AMI BIOS
Additional Info
Others Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide
Warranty Information
Manufacturing Warranty 3 Years
