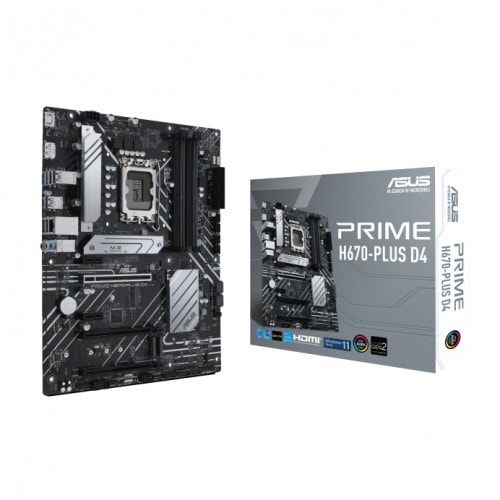

Asus PRIME H670-PLUS D4 Intel 12th Gen ATX Motherboard
0.00৳
- Brand: ASUS
- Model: ASUS PRIME H670-PLUS D4
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: Up to DDR4 5066(OC)
- Max Memory: 128GB
- Aura Sync
- ASUS OptiMem
Out of stock
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 Supports Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H670 Chipset |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX 30.5cm x 24.4cm |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Chipset Brand | Intel |
| Chipset | H670 |
| Supported Sockets | LGA1700 |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*" Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Maximum Memory | 128GB |
| Memory MHz | Up to 5066(OC) |
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
| PCI | Intel 12 Gen Processors* 1 x PCIe 4.0 x16 slot Intel H670 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel Optane Memory H Series on PCH-attached PCIe slot. |
| M.2 Socket | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel® H670 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| HDMI | 1 x HDMI® port |

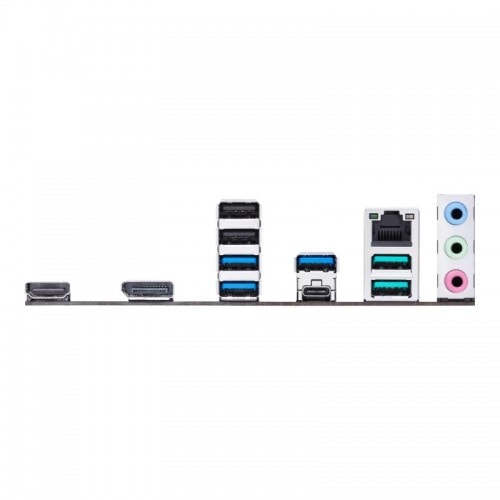

| USB (s) | Rear USB:Total 8 ports Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Internal I/O Ports | Fan and Cooling related -1 x 4-pin CPU Fan header -1 x 4-pin AIO Pump header -3 x 4-pin Chassis Fan headers Power related -1 x 24-pin Main Power connector -1 x 8-pin +12V Power connector Storage related -3 x M.2 slots (Key M) -4 x SATA 6Gb/s ports USB -2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports -1 x USB 2.0 header supports additional 2 USB 2.0 ports -1 x USB 2.0 header supports additional 1 USB 2.0 port Miscellaneous -3 x Addressable Gen 2 headers -2 x AURA RGB headers -1 x Clear CMOS header -1 x COM Port header -1 x Front Panel Audio header (AAFP) -1 x M.2 slot (Key E) -1 x S/PDIF Out header -1 x SPI TPM header (14-1pin) -1 x 20-3 pin System Panel header with Chassis intrude function -1 x Thunderboltâ„¢ header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort |
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | 2.5Gb Ethernet ASUS LANGuard |
| WiFi | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Form Factor | ATX 30.5cm x 24.4cm |
| Bios Type | 192 (128+64) Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
| Others | Special Features ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide |
| Manufacturing Warranty | 03 Years |
Asus PRIME H670-PLUS D4 Intel 12th Gen ATX Motherboard
The ASUS Prime H670-PLUS D4 motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
PRIME H670-PLUS D4 Features
Intel H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C, Realtek 2.5Gb Ethernet, Thunderbolt 4 header support, DisplayPort, HDMI, Aura Sync
Intel LGA 1700 socket: Ready for 12th Gen Intel® processors
Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderboltâ„¢ 4 header support
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
What is the Asus PRIME H670-PLUS D4 Intel 12th Gen ATX Motherboard Price In Bangladesh?
The latest price of the Asus PRIME H670-PLUS D4 Intel 12th Gen ATX Motherboard is 0৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus PRIME H670-PLUS D4 Motherboard at the best price in BD.
