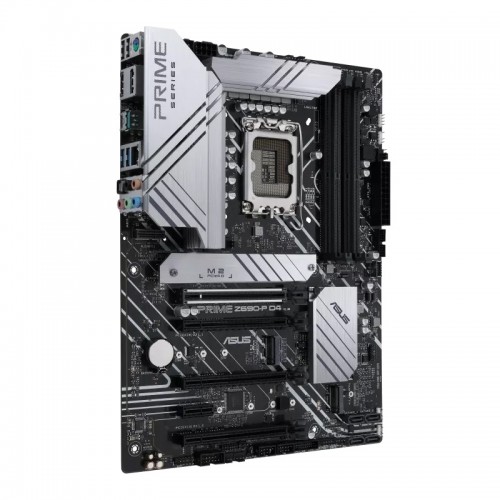

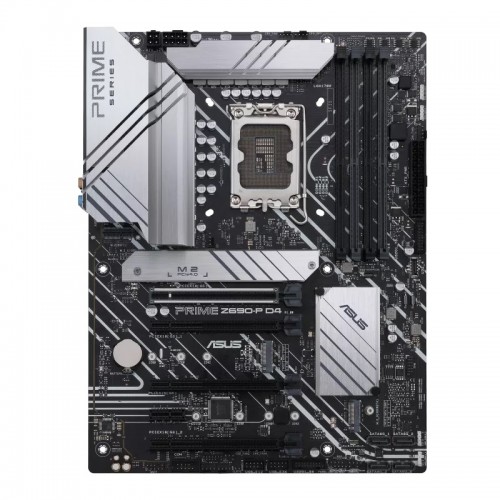

Asus Prime Z690-P D4 Intel 12th Gen ATX Motherboard
0.00৳
- Brand: ASUS
- Model: PRIME Z690-P D4
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: Up to DDR4 5333(OC)
- Max Memory: 128GB
- Enhanced power solution
- Comprehensive cooling
- ASUS OptiMem II
Out of stock
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Supports Intel Turbo Boost Max Technology 3.0 ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Z690 |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX 30.5cm x 23.4cm |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
| Chipset Brand | Intel |
| Chipset | Z690 |
| Supported Sockets | LGA1700 |
| Graphics | 1 x DisplayPort** 1 x HDMI®*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 128GB |
| Memory MHz | Up to DDR5 6000(OC) |
| Optane Memory Support | OptiMem II |
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
| PCI | Intel 12 Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot ** Supports Intel Optane Memory H Series on PCH-attached PCIe slot |
| M.2 Socket | Intel 12 Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12 Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| HDMI | 1 x HDMI port |
| USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort |
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | 2.5Gb |
| WiFi | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2 |
| Form Factor | ATX 30.5cm x 23.4cm |
| Bios Type | 192 (128+64) Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
| Others | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers Software Features ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide |
| Manufacturing Warranty | 03 Years |
Asus Prime Z690-P D4 Intel 12th Gen ATX Motherboard
The ASUS Prime Z690-P D4 motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-P offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Flexible Air- and Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans and an all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS. The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. It has two massive VRM heatsinks and high-quality thermal pads to improve heat transfer from the MOSFETs and chokes for better cooling performance.
Features of Asus Prime Z690-P D4Â Motherboard
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery.
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4.
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
- Next-gen connectivity: DDR5, PCIe 5.0, Intel 6, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support.
What is the Asus Prime Z690-P D4 Intel 12th Gen ATX Motherboard Price In Bangladesh?
The latest price of the Asus Prime Z690-P D4 Intel 12th Gen ATX Motherboard is 24,800৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus Prime Z690-P D4 Motherboard at the best price in BD.
