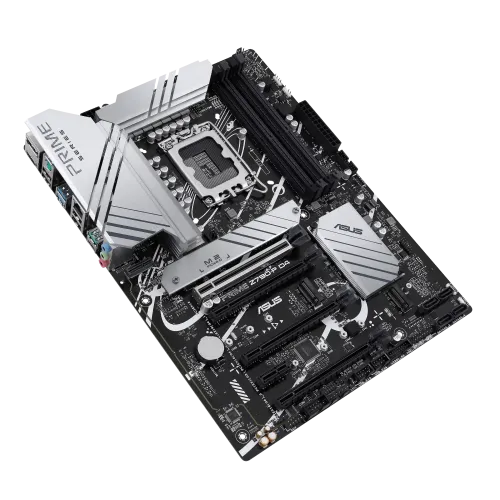

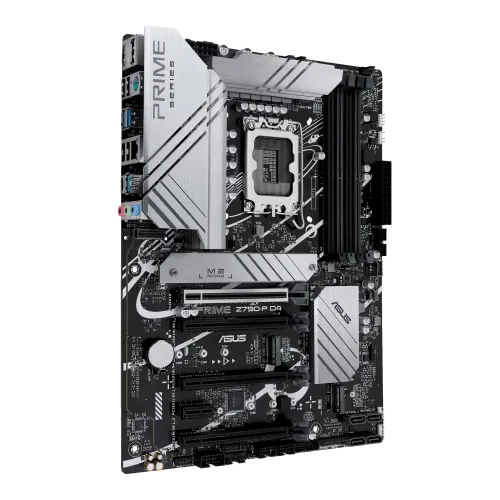

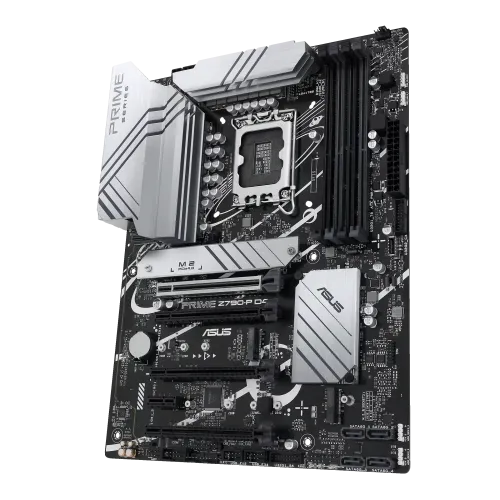

ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard
0.00৳
Key Features
- Model: PRIME Z790-P D4
- Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DIMM, Max. 128GB, DDR4 5333(OC)
- Graphics Output: 1 x DisplayPort, 1 x HDMI
- Features: Realtek 2.5Gb Ethernet
Out of stock
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | 128GB |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| HDMI | 1 x HDMI |

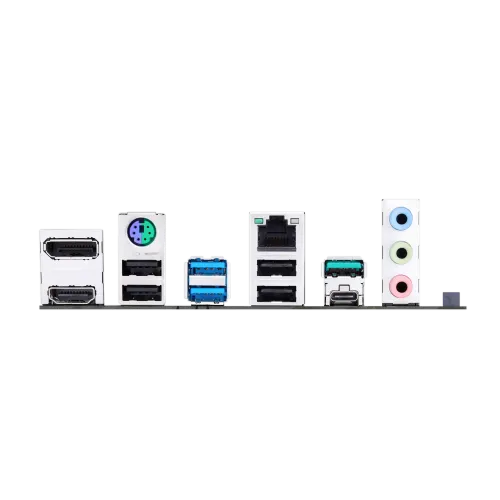

| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Manufacturing Warranty | 3 years |
ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard
The ASUS PRIME Z790-P D4 features LGA 1700 socket and the Z790 chipset. It supports Intel 13th Gen Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It comes with four DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory up to 5333(OC) for enhanced multitasking capabilities and complex photo and video rendering. It is equipped with a 14+1 DrMOS, ProCool sockets, alloy chokes, and durable capacitors, the PRIME delivers stable power throughout the entire motherboard. This motherboard is equipped with four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. ASUS PRIME Z790-P D4 offers a range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 back panel ports and internal headers that provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays. You can use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection. The ASUS PRIME Z790-P D4 13th Gen ATX Motherboard comes with 3 years of warranty.
What Is The ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard Price In Bangladesh?
The latest price of the ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard is Up Coming in Bangladesh. Order online OR visit our showrooms to buy the ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard at the best price in BD.
