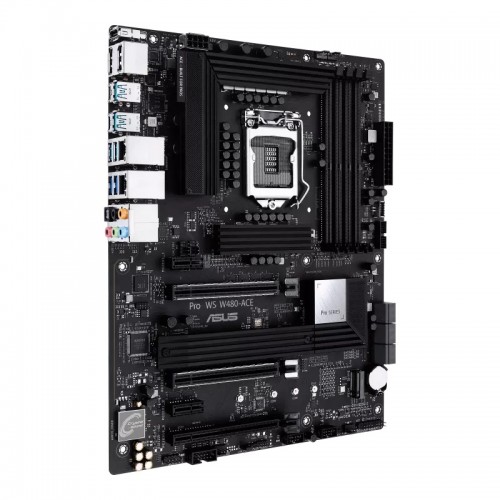

Asus Pro WS W480-ACE Intel Workstation Motherboard
0.00৳
Key Features
- Model: Pro WS W480-ACE
- Intel Socket LGA 1200 for Xeon W-1200 series processors
- 4x DDR4 DIMM, Max 128GB
- Fan-less VRM heatsink
- 2 x M.2 slots 22110
Out of stock
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel W480 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch (30.5 cm x 23.4 cm) |
| Audio | Realtek ALC S1220A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 3-Way CrossFireX Technology |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | 128GB |
| PCI | Intel 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel W480 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| M.2 Socket | Total supports 2 x M.2 slots |
| HDMI | 1 x HDMI |

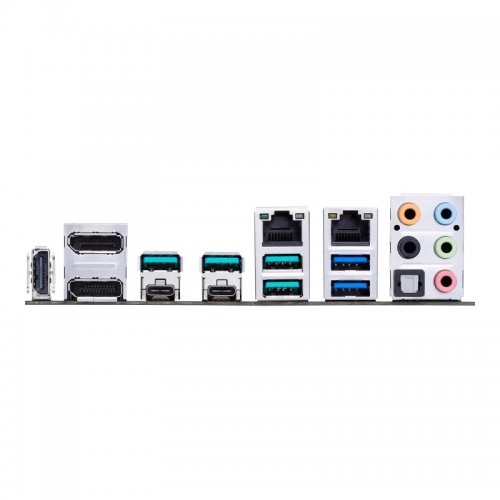

| USB (s) | Intel Thunderbolt 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) Thunderbolt: 2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| LAN Port (s) | Intel I225-LM 2.5Gb Ethernet Realtek RTL8117 |
| Audio | 5 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Others | ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED - ASUS Q-Shield - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool II - SafeSlot Out-of-band Management - BIOS Update Indicator LED - LAN Initialization Indicator LED |
| Manufacturing Warranty | 3 Years |
Asus Pro WS W480-ACE Intel Workstation Motherboard
The Asus Pro WS W480-ACE Intel Workstation Motherboard is powered by the latest Intel Xeon W-1200 workstation processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. Asus Pro WS W480-ACE Workstation motherboard is designed for professionals in AI training, deep learning, animation, 3D rendering, or media production. Featuring expandable graphics, extensive storage, impressive connectivity, and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they’re also an efficient and cost-effective option for IT administrators. Asus Pro WS W480-ACE features an onboard RTL8117 management LAN port that gives IT administrators reliable remote hardware-level access to the workstation in the event of a system crash or when no OS is installed. With the ability to manage BIOS settings and perform updates, hardware resets and even OS installations, hardware-level access on Pro WS W480-ACE makes IT management of your business systems easier and more efficient. Asus Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, Asus Control Center Express is compatible with over 100 Asus motherboards to give you more upgrade flexibility and fewer compatibility issues. The Asus Pro WS W480-ACE comes with 3 years of warranty.
What Is The Asus Pro WS W480-ACE Intel Workstation Motherboard Price In Bangladesh?
The latest price of the Asus Pro WS W480-ACE Intel Workstation Motherboard is 26,500৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus Pro WS W480-ACE Intel Workstation Motherboard at the best price in BD.
