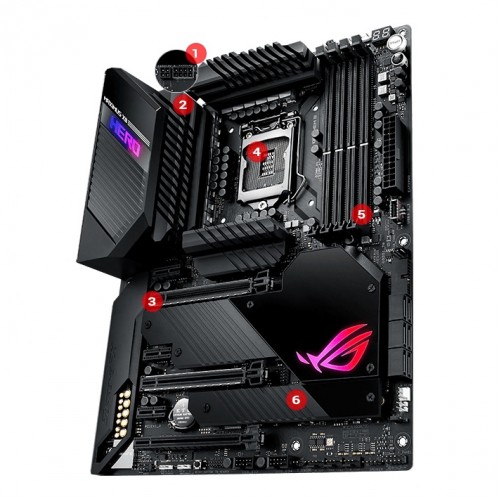

Asus ROG MAXIMUS XII HERO Z490 10th and 11th Gen WiFi ATX Motherboard
0.00৳
- Brand: ASUS
- Model: ASUS ROG MAXIMUS XII HERO Z490
- Supported CPU: Intel 10th and 11th Gen Processors
- Supported Memory: Up to 4800(O.C.)
- Max Memory: 128GB
- Graphics Output: HDMI
Out of stock
Product Specifications
Basic Information
| Supported CPU |
Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 14nm CPU |
| Chipset | Intel Z490 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor |
ATX 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm ) |
| Audio |
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220*6 - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - ESS™ ES9023 DAC + RC4580 OP AMP - Premium Japanese audio capacitors - Audio Cover - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel |
CPU
| Chipset Brand | Intel |
| Chipset | Intel Z490 |
| Supported Sockets | LGA1200 |
Graphics
| Graphics |
1 x HDMI 1.4b *Graphics specifications may vary between CPU types. Integrated Graphics Processor |
Memory
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory |
10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 128GB Max. |
| Memory MHz | Up to 4800(O.C.) |
Storage
| Storage Interface | 6 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
Expansion Slots
| PCI |
2 x PCIe 3.0 x16 (x16 or dual x8) *1 1 x PCIe 3.0 x16 (x4 mode) *2 Intel® 10th Gen Processors Intel® Z490 Chipset 3 x PCIe 3.0 x1 |
| M.2 Socket |
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4 1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Intel® Z490 Chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
Connector & Ports
| HDMI | 1 x HDMI 1.4b |
| USB (s) |
Rear USB Port ( Total 10 ) 4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN Port (s) |
Intel I219-V 1Gb Ethernet Marvell AQtion AQC111C 5Gb Ethernet ASUS LANGuard |
| Audio | 5 x Gold-plated audio jacks |
| Internal I/O Ports |
1 x AAFP connector 3 x M.2 Socket 3 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 1 x FlexKey button 1 x Thunderbolt header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x Start button |
| TPM (Trusted Platform Module ) | N/A |
Network & Connectivity
| LAN Chipset |
Intel® I219-V 1Gb Ethernet Marvell® AQtion AQC111C 5Gb Ethernet ASUS LANGuard |
| LAN Speed (Mbps) | Gigabit |
| WiFi |
Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| WiFi Technology | 802.11 a/b/g/n/ac/ax |
Technical Info
| Form Factor |
ATX 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm ) |
| Bios Type | 256 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
Additional Info
| Others |
Software Features [ROG Exclusive Software] - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app - EZ update AI Charger WinRAR [UEFI BIOS] AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features ROG Extreme OC kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB headers Accessories 2 x M.2 SSD screw package(s) 2 x M.2 Rubber Package(s) 1 ROG key chain Addressable LED extension cable 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) User´s manual 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG Thank you card |
Warranty Information
| Manufacturing Warranty | 03 Years |
