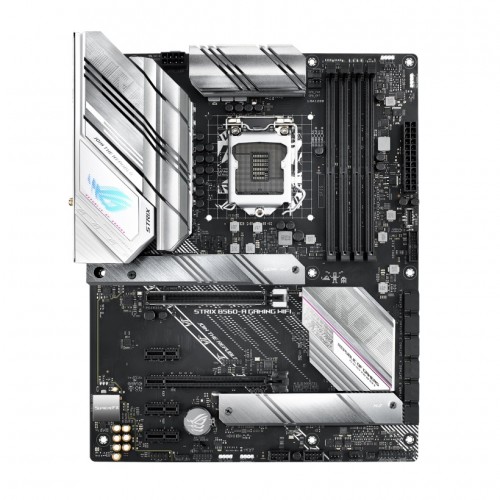

ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard
Original price was: 23,880.00৳ .22,700.00৳ Current price is: 22,700.00৳ .
Key Features
- Model: ROG STRIX B560-A GAMING WIFI
- Intel LGA 1200 socket for 11th & 10th Gen Core, Pentium Gold, and Celeron processors
- On-board Intel WiFi 6 (802.11ax) and Realtek 2.5 Gb Ethernet
- HDMI 2.0 and DisplayPort 1.4 output
- ASUS-exclusive Aura Sync RGB lighting
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX 30.5cm x 24.4cm |
| Audio | - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0** * Graphics specifications may vary between CPU types. **Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. *** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Type | DDR4 |
| Slots | 4 x DDR4 (Dual channel) |
| Supported Memory | Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. |
| PCI | ntel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 mode - Intel10th processors support PCIe 3.0 x16 mode Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots |
| M.2 Socket | 2 x M.2 slots |
| HDMI | 1 x HDMI 2.0 |
| USB (s) | Rear USB: Total 9 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | 1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt header 1 x S/PDIF Out header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| Manufacturing Warranty | 03 Years Warranty |
ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard
The ROG Strix B560-A Gaming WiFi delivers everything you need to create a well-balanced Micro ATX-based gaming PC utilizing 11th Generation Intel Core processors. It’s ready to take on heavyweight graphics cards and neatly crams in options for the latest storage and networking standards. AI enhancements that have trickled down from higher-end counterparts add a further performance boost. As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. It features Best Gaming Connectivity. It supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots, and USB 3.2 Gen 2×2 USB Type-C. It has a DIY Friendly Design. M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, and Q-LED. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers. It is equipped with Industry-Leading Gaming Audio. SupremeFX S1220A codec with Savitch SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound, and Sonic Studio III. It has 3 years of warranty.
What Is The ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard Price In Bangladesh?
The latest price of the ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard is 22,700৳ in Bangladesh. Order online OR visit our showrooms to buy the ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard at the best price in BD.
