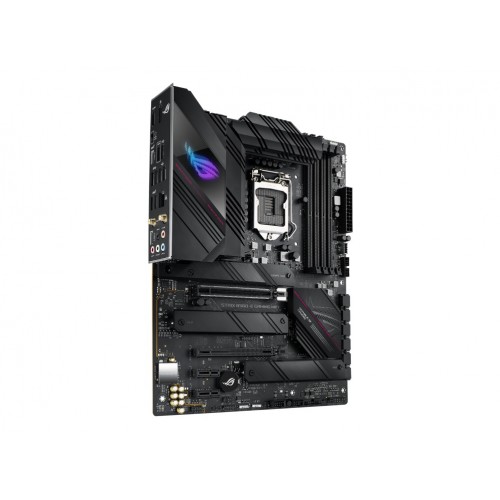

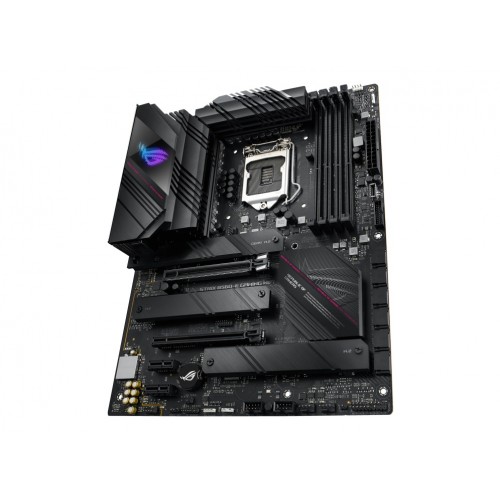

Asus ROG STRIX B560-E GAMING WiFI 11th and 10th Gen ATX Motherboard
0.00৳
- Brand: ASUS
- Model: ASUS ROG STRIX B560-E GAMING WIFI
- Supported CPU: Intel 11th and 10th Gen Processors
- Supported Memory: DDR4 Up to 3200
- Max Memory: 128GB
- Graphics Output: HDMI & Display Port
Out of stock
Product Specifications
Basic Information
| Supported CPU |
Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 14 nm CPU Intel Turbo Boost Technology 2.0 Intel Turbo Boost Max Technology 3.0 **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor |
ATX 30.5cm x 24.4cm |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
CPU
| Chipset Brand | Intel |
| Chipset | B560 |
| Supported Sockets | LGA1200 |
Graphics
| Graphics |
Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only help HDMI™ 1.4 with max. resolution of 4K@30Hz. **Graphics specifications may vary between CPU types. |
Memory
| Type | DDR4 |
| Slots | 4 x DIMM (Dual channel) |
| Supported Memory |
11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | 128GB |
| Memory MHz | Up to 3200MHz |
Storage
| Storage Interface | 6 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
Expansion Slots
| M.2 Socket |
M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** ** The M.2_2 shares bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M.2_2 can’t run PCI-E mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled) ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. |
Connector & Ports
| HDMI | 1 x HDMI 2.0 |
| USB (s) |
Rear USB: Total 10 ports Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| LAN Port (s) |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort 1.4 |
Network & Connectivity
| LAN Chipset | Intel |
| WiFi |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
| Bluetooth | Bluetooth v5.2 |
Technical Info
| Form Factor | ATX |
| Bios Type | 128 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
| Internal I/O Connectors |
1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header |
Additional Info
| Others |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
Warranty Information
| Manufacturing Warranty | 03 Years |
