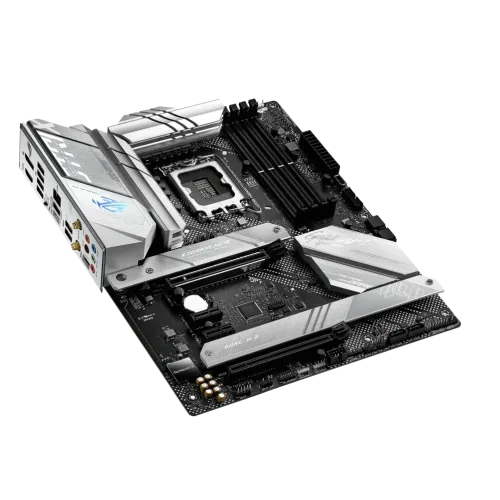

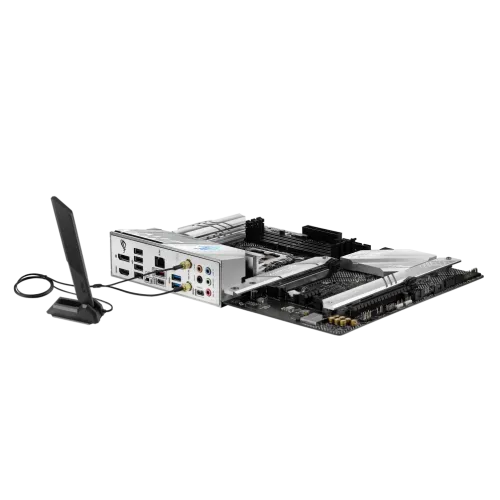

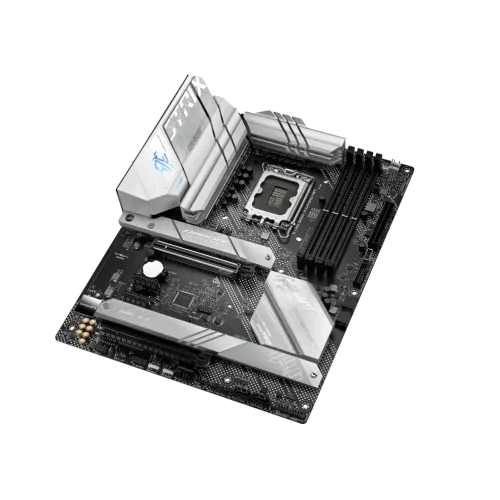

ASUS ROG STRIX B660-A GAMING WIFI DDR5 12th Gen Intel ATX Motherboard
Original price was: 28,430.00৳ .26,200.00৳ Current price is: 26,200.00৳ .
Key Features
- Model: ROG STRIX B660-A GAMING WIFI
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- 12+1 power stages with ProCool power connectors
- Integrated I/O cover and VRM heatsinks
- DDR5 Overclocking Strength
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | B660 |
| BIOS | 192 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 30.5cm x 24.4cm |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover |
| Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture OptiMem II |
| Maximum Memory | 128GB |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| HDMI | 1 x HDMI port |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| Manufacturing Warranty | 3 years |
ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard
The Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard provides an optimal power solution, 12 + 1 power stages with ProCool power connections, high-quality alloy chokes, and long-lasting capacitors to support multi-priced CPUs. It features an Optimized Thermal Design. Integrated I/O cover, VRM heatsinks with high-conductivity thermal pads, and three integrated M.2 heatsinks. This motherboard offers high-performance networking. Intel WiFi 6 (802.11ax) and Intel Ethernet 2.5Gb with ASUS LANGuard. Better gaming connectivity is provided by the Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard. It supports HDMI 2.1 and DisplayPort 1.4 output, as well as three M.2 slots and USB 3.2 Gen 2×2 Type-C. To ease setup and boost performance, this motherboard has Smart Control, ASUS Exclusive AI cooling, AI networking, and 2-way noise reduction. It boasts an easy-to-use design, an M.2 latch, a pre-mounted I/O shield, a BIOS FlashBack button, and a Q-LED. It boasts unrivaled customizability, ASUS unique Aura Sync RGB lighting, one RGB header, and three Gen 2 addressable headers. The Asus ROG STRIX B660-A GAMING WIFI comes with a 03-years warranty.
What Is The ASUS ROG STRIX B660-A GAMING WIFI DDR5 12th Gen Intel ATX Motherboard Price In Bangladesh?
The latest price of the ASUS ROG STRIX B660-A GAMING WIFI DDR5 12th Gen Intel ATX Motherboard is 26,200৳ in Bangladesh. Order online OR visit our showrooms to buy the ASUS ROG STRIX B660-A GAMING WIFI DDR5 12th Gen Intel ATX Motherboard at the best price in BD.
