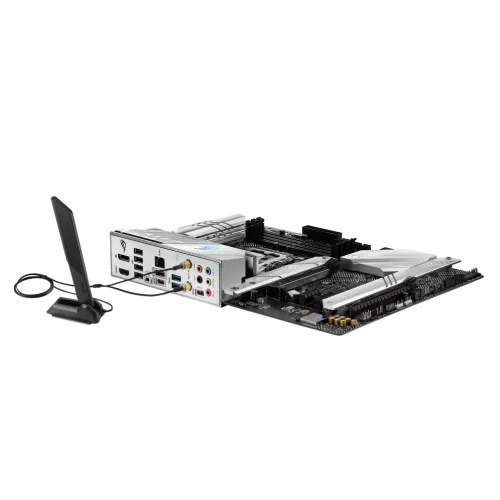

Asus ROG STRIX B660-A GAMING WiFi Intel 12th Gen ATX Motherboard
26,400.00৳
- Brand: ASUS
- Model: ROG STRIX B660-A GAMING WiFi
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: Up to DDR5 6000+(OC)
- Max Memory: 128GB
- Optimized Thermal Design
- DIY Friendly Design
- Renowned Software
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Supports Intel Turbo Boost Max Technology 3.0 ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B660 |
| BIOS | 192 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 30.5cm x 24.4cm |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover |
| Chipset Brand | Intel |
| Chipset | B660 |
| Supported Sockets | LGA1700 |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1 **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Maximum Memory | 128 Gb |
| Memory MHz | Up to DDR5 6000(OC)/ |
| Optane Memory Support | OptiMem II |
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots |
| M.2 Socket | Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| HDMI | 1x HDMI |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort |
| LAN Chipset | Intel |
| LAN Speed (Mbps) | 2.5Gb Ethernet |
| WiFi | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2 |
| Others | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Bundled Software ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Manufacturing Warranty | 03 Years |
Asus ROG STRIX B660-A GAMING WiFi Intel 12th Gen ATX Motherboard
The Asus ROG Strix B660-A Gaming WiFi motherboard offers robust power delivery and optimized cooling to unleash the performance of the latest 12th Gen Intel CPUs. Meanwhile, onboard PCIe 5.0 and three PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios. Exclusive ASUS Enhanced Memory Profile tuning also propels PMIC-locked DDR5 modules to new heights. Finally, DIY-friendly innovations streamline the building process, and a striking silver-white aesthetic delivers an appropriately premium feel. It has 12+1 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, ROG Strix B660-A Gaming WiFi breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Features Asus ROG STRIX B660-A GAMING WiFi Motherboard
- Optimal Power Solution:Â 12+1 power stages with ProCool power connectors, high-grade alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design:Â Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
- High-performance Networking:Â Onboard Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity:Â Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C
- Intelligent Control:Â ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design:Â M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBackâ„¢ button and Q-LED
- Unmatched Personalization:Â ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio:Â ALC4080 with a Savitech SV3H712 amplifier, along with DTS Sound Unboundâ„¢ and Sonic Studio III
- Renowned Software:Â Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
What is the Asus ROG STRIX B660-A GAMING WiFi Intel 12th Gen ATX Motherboard Price In Bangladesh?
The latest price of the Asus ROG STRIX B660-A GAMING WiFi Intel 12th Gen ATX Motherboard is 26,400৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus ROG STRIX B660-A GAMING WiFi Motherboard at the best price in BD.
