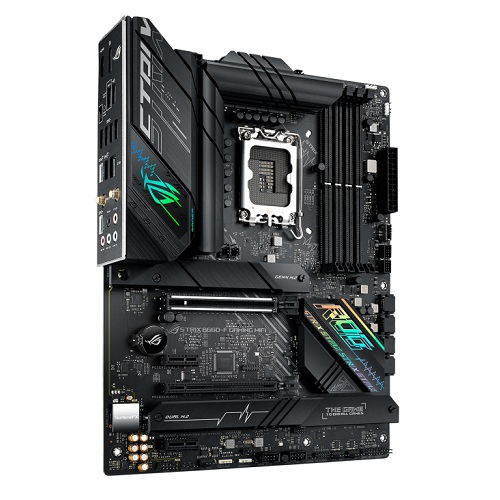

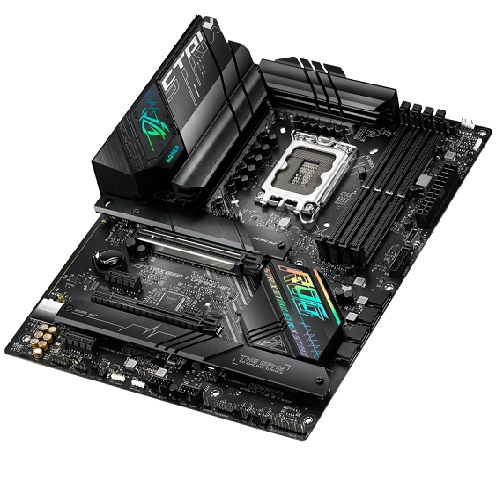

Asus ROG STRIX B660-F GAMING WiFi Intel 12th Gen ATX Motherboard
28,900.00৳
- Brand: ASUS
- Model: ROG STRIX B660-F GAMING WiFi
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: Up to DDR5 6000+(OC)
- Max Memory: 128GB
- Extreme Engine Digi+
- ASUS Thermal Solution
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Supports Intel Turbo Boost Max Technology 3.0 ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B660 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover |
| Chipset Brand | Intel |
| Chipset | B660 |
| Supported Sockets | LGA1700 |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 128GB |
| Memory MHz | Up to 6000(OC) |
| Optane Memory Support | OptiMem II |
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 3 x SSD Expansion Slot |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| M.2 Socket | Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| HDMI | 1 x HDMI port |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x S/PDIF Out header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort |
| LAN Chipset | Intel |
| LAN Speed (Mbps) | 2.5Gb |
| WiFi | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Bios Type | 256 Mb Flash ROM, |
| Bios Model | UEFI AMI BIOS |
| Compatibility | Windows 10 64-bit, Windows 11 64-bit |
| Others | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 Accessories Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Manufacturing Warranty | 03 Years |
Asus ROG STRIX B660-F GAMING WiFi Intel 12th Gen ATX Motherboard
The ROG Strix B660-F Gaming WiFi offers high-grade power delivery and optimized cooling to unleash the latest 12th Gen Intel Core processors. Onboard PCIe 5.0 and a spread of PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, while DDR5 gets propelled beyond all limits by ASUS AEMP. On top of all that, DIY-friendly innovations and an arsenal of system utilities help simplify the PC building process and get you up and running smoothly. It has 16+1 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of. High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. The ASUS ProCool socket is built to exact specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, ROG Strix B660-F Gaming WiFi breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, ROG Strix B660-F Gaming WiFi includes the exclusive ASUS Enhanced Memory Profile (AEMP)* firmware feature for PMIC-restricted memory modules. The ROG Strix B660-F Gaming WiFi will turn heads with a striking matte black finish that contrasts with a bold Aura RGB-illuminated glitch-effect logo. Meanwhile, parallel strakes and dotted text on the precision-cut metal I/O shroud, M.2 and PCH heatsinks tie the whole aesthetic together and underline the ROG Strix fundamentals of speed, diversity and attitude.
Features of ROG STRIX B660-F GAMING WiFi Motherboard
- Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates
- High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
- Industry-leading Gaming Audio: ALC4080 with Savitch SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
What is the Asus ROG STRIX B660-F GAMING WiFi Intel 12th Gen ATX Motherboard Price In Bangladesh?
The latest price of the Asus ROG STRIX B660-F GAMING WiFi Intel 12th Gen ATX Motherboard is 28,900৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus ROG STRIX B660-F GAMING WiFi Motherboard at the best price in BD.
