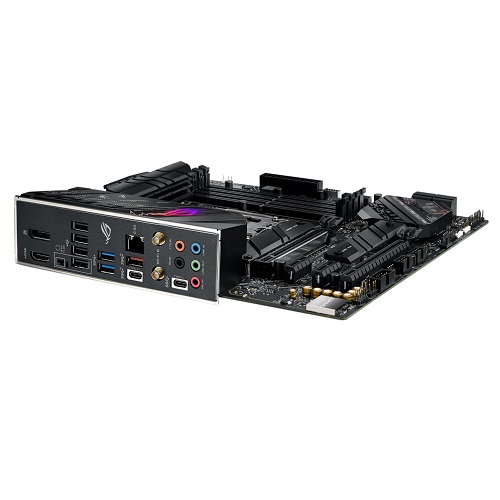

Asus ROG STRIX B660-G GAMING WiFi Intel 12th Gen mATX Motherboard
25,900.00৳
- Brand: ASUS
- Model: ROG STRIX B660-G GAMING WiFi
- Supported CPU: Intel 12th Gen Processors
- Supported Memory: Up to DDR5 6000+(OC)
- Max Memory: 128GB
- High-performance Networking
- Intelligent Control
- Unmatched Personalization
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Supports Intel Turbo Boost Max Technology 3.0 ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B660 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover |
| Chipset Brand | Intel |
| Chipset | B660 |
| Supported Sockets | LGA1700 |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 128 GB |
| Memory MHz | Up to DDR5 6000(OC) |
| Optane Memory Support | OptiMem II |
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 2 x SSD Expansion Slot |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots |
| M.2 Socket | Total supports 2 x M.2 slots Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| HDMI | 1 x HDMI port |

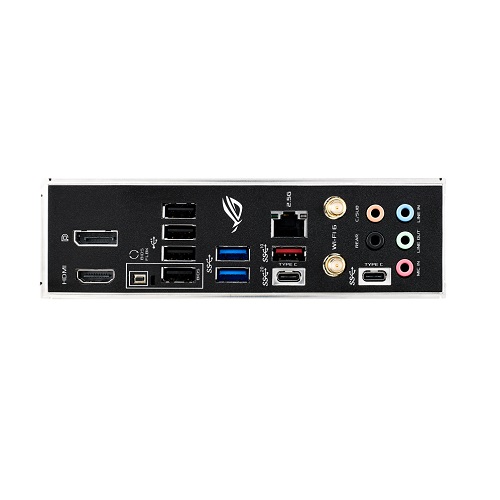

| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| LAN Port (s) | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Display Port | 1 x DisplayPort |
| LAN Chipset | Intel |
| LAN Speed (Mbps) | 2.5Gb Ethernet |
| WiFi | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2 |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Bios Type | 256 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
| Others | Special Features Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector -Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Bundled Software ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package(s) 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Manufacturing Warranty | 03 Years |
Asus ROG STRIX B660-G GAMING WiFi Intel 12th Gen mATX Motherboard
The Asus ROG Strix B660-G Gaming WiFi is the premiere choice for DIY builders who enjoy working with a well-balanced microATX-based platform. Its hefty heat sinks and premium power delivery unleash the full force of 12th Gen Intel Core processors that feature full support for DDR5 memory and PCIe 5.0. Meanwhile, onboard passively cooled PCIe 4.0 M.2 slots offer lightning-fast data transfers for an endless variety of scenarios. Finally, a stack of exclusive intelligent controls and ASUS Enhanced Memory Profile tuning can work together to optimize every aspect of system performance. High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, ROG Strix B660-G Gaming WiFi breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max. Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory. For users new to memory overclocking, ROG Strix B660-G Gaming Wi-Fi includes the exclusive ASUS Enhanced Memory Profile (AEMP)* firmware feature for PMIC-restricted memory modules
Features of Asus ROG STRIX B660-G GAMING WiFi Motherboard
- Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt header support, USB-C DisplayPort and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+.
- Next-gen performance:Â 12+1 power stages rated for 50 amps, PCIe 5.0 ready.
- Optimized thermal design: A massive VRM and chipset heatsink, aluminium M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header.
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control.
- Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express.
What is the Asus ROG STRIX B660-G GAMING WiFi Intel 12th Gen mATX Motherboard Price In Bangladesh?
The latest price of the Asus ROG STRIX B660-G GAMING WiFi Intel 12th Gen mATX Motherboard is 25,900৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus ROG STRIX B660-G GAMING WiFi Motherboard at the best price in BD.
