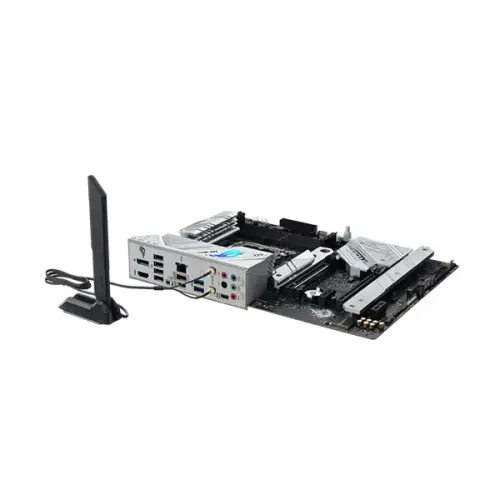

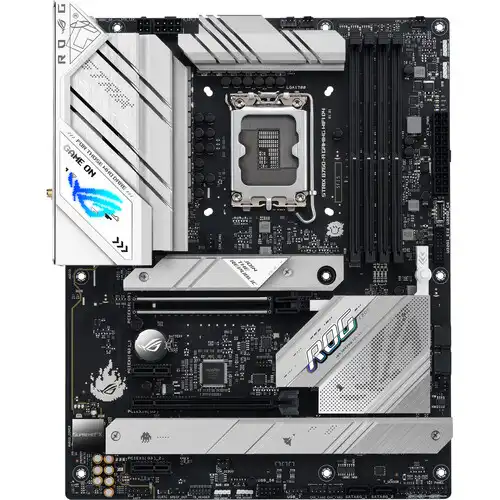

Asus ROG STRIX B760-A GAMING WIFI D4 12th Gen & 13th Gen ATX Motherboard

0.00৳

Key Features

  • Model: ROG STRIX B760-A GAMING WIFI D4
  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E

Out of stock

Category:
Product Specifications
Basic Information
Supported CPU ntel® Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC)/4266(OC) / 4000(OC)/3733(OC) / 3600(OC) / 3466(OC)/3400(OC) / 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 Socket Total supports 3 x M.2 slots
Connector & Ports
HDMI 1 x HDMI port
USB (s) Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard // TUF LANGuard
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thunderbolt (USB4) header
Warranty Information
Manufacturing Warranty 3 years warranty
