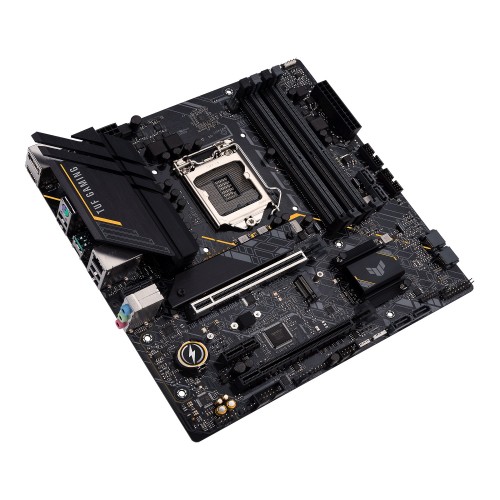

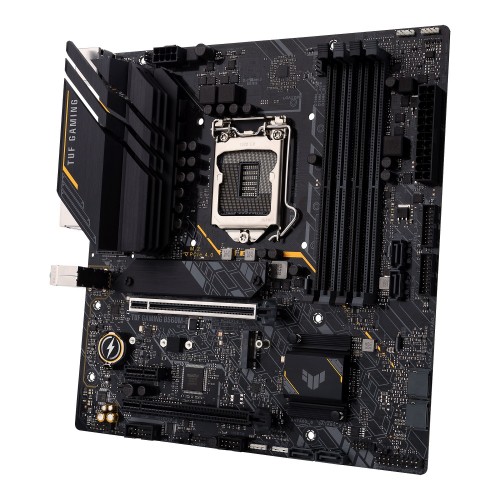

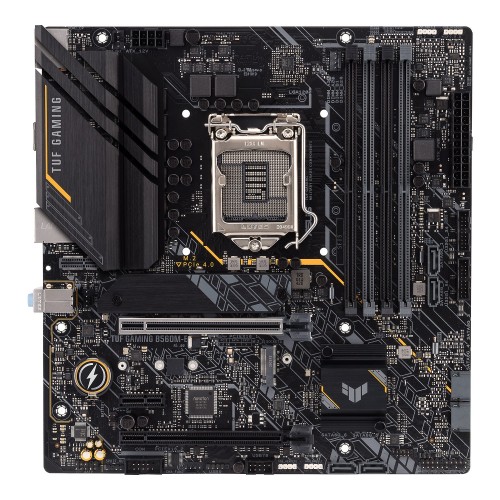

ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard
Original price was: 16,710.00৳ .15,500.00৳ Current price is: 15,500.00৳ .
Key Features
- Model: TUF GAMING B560M-E
- Intel LGA 1200 socket: Ready for 11th & 10th gen processors
- Support memory overclocking up to 5000 MHz
- PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2 Type-C
- ASUS OptiMem II
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | B560 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX 24.4cm x 23.4cm |
| Audio | ALC887/897 Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Graphics | 1 x DP1.4** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. |
| Type | Dual Channel Memory Architecture |
| Slots | 4 x DIMM, DDR4 |
| Supported Memory | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | Max. 128GB |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots |
| M.2 Socket | Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| HDMI | 1 x HDMI port |

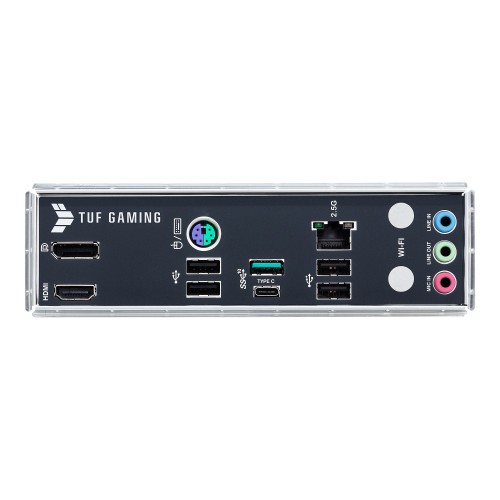

| USB (s) | Rear USB:Total 6 ports Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function |
| TPM (Trusted Platform Module ) | N/A |
| Others | ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| Manufacturing Warranty | 03 Years Warranty |
ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard
The ASUS TUF GAMING B560M-E is compatible with 10th and 11th Intel Core processors (Intel LGA 1200 socket). It comes with upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. A larger, high-mass heatsink with an extensive surface that covers the VRM and chokes areas improves heat dissipation. The TUF GAMING B560M-E has a flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability. It also features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS. This motherboard has been designed to be easy to set up and configure just the way you want.
Memory Overclocking up to 5000 MHz
TUF GAMING B560M-E supports memory overclocking up to 5000 MHz. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
USB 3.2 Gen 2 Type-A, Type-C, and V-M.2 Slot(Key E) for Wi-Fi
The ASUS TUF GAMING B560M-E comes with a rear-panel USB Type-C connector with fast USB 3.2 Gen 1 connectivity for compatible cases. It also comes along with a vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi cardholder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
Immersive Gaming Experience with TUF GAMING B560M-E
The TUF GAMING B560M-E motherboard provides a complete, high-performance gaming experience with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. It has 2.5G onboard Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement.
Aura Sync RGB Lighting
ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices.
What Is The ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard Price In Bangladesh?
The latest price of the ASASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard is 11,200৳ in Bangladesh. Order online OR visit our showrooms to buy the ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard at the best price in BD.
