ASUS TUF GAMING B560M-PLUS WIFI 10th and 11th Gen Micro ATX Motherboard

0.00৳

Key Features

  • Model: TUF GAMING B560M-PLUS WIFI
  • Intel LGA 1200 socket: Ready for 11th Gen Intel Core Processors
  • Enhanced Power Solution
  • Comprehensive Cooling
  • Next-Gen Connectivity

Out of stock

Category:
Product Specifications
Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B560 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Graphics
Graphics 1 x DisplayPort 1.4
1 x HDMI 1.4 / 2.0
Memory
Type DDR4
Slots 4x DIMM
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Expansion Slots
PCI Intel 11th &10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot(s)
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel10th Gen processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
M.2 Socket Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/ 2260/ 2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)

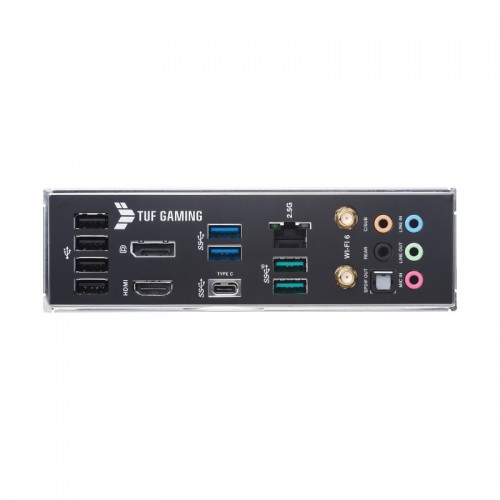

Connector & Ports
HDMI 1 x HDMI 1.4 / 2.0
USB (s) Rear USB: Total 9 ports
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB: Total 7 ports
1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Audio - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/ 192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Internal I/O Ports 1 x TB Header (for add-on TB card)
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Warranty Information
Manufacturing Warranty 03 Years Warranty
