Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Original price was: 21,776.00৳ .20,600.00৳ Current price is: 20,600.00৳ .
Key Features
- Model: TUF GAMING B660M-PLUS D4
- Supported Processors: 12th Gen Intel Core, Pentium Gold & Celeron
- Supported Memory: 4 x DIMM, Max. 128GB, DDR4
- Supported Socket: Intel Socket LGA1700
- Realtek 2.5Gb Ethernet, TUF LANGuard
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B660 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX 24.4cm x 24.4cm |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | Max. 128GB, DDR4 |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot Supports Intel Optane Memory H Series on PCH-attached PCIe slot. |
| M.2 Socket | Total supports 2 x M.2 |
| HDMI | 1 x HDMI port |
| USB (s) | Rear USB:Total 8 ports Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | TUF LANGuard 1 x Realtek 2.5Gb Ethernet TUF LANGuard |

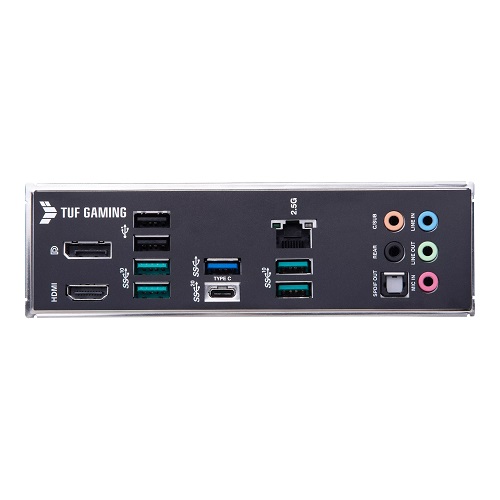

| Internal I/O Ports | Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Others | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Manufacturing Warranty | 3 years warranty |
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 Supported with 12th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Socket LGA1700, 4 x DIMM, Max. 128GB, DDR4 memory. This Motherboard comes with Enhanced power solution, like 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability. In this TUF GAMING B660M-PLUS D4 motherboard, it is also has Comprehensive cooling function, these are – Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. This Asus TUF GAMING B660M-PLUS D4 mother board also has Latest connectivity, these are PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 header support, Realtek 2.5Gb Ethernet, TUF LAN Guard. This TUF GAMING B660M-PLUS D4 has Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. The Latest Asus TUF GAMING B660M-PLUS D4 Motherboard offers 01 year warranty.
What Is The Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard Price In Bangladesh?
The latest price of the Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard is 20,600৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard at the best price in BD.
