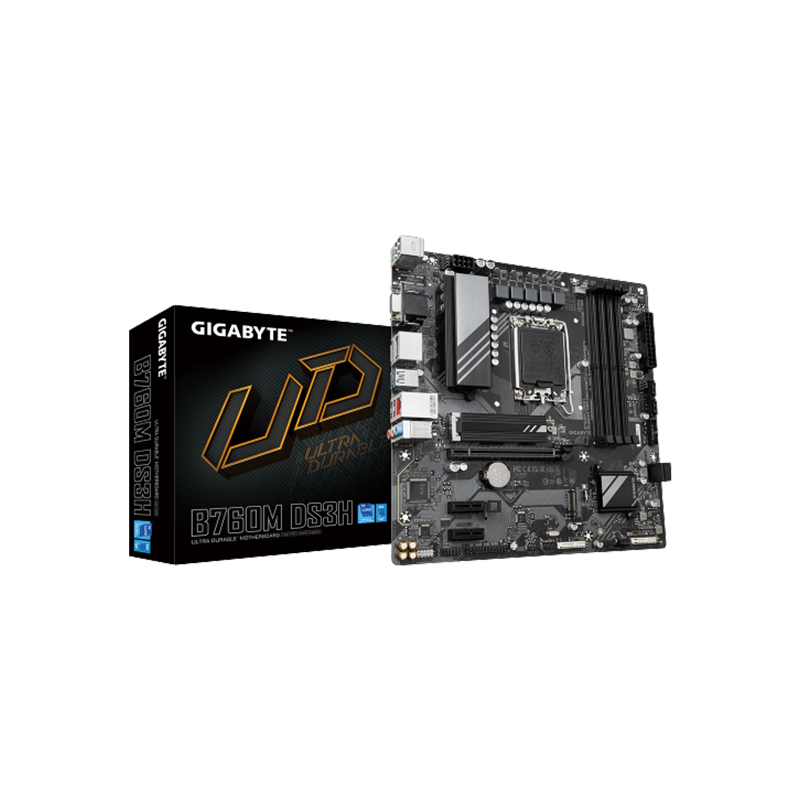

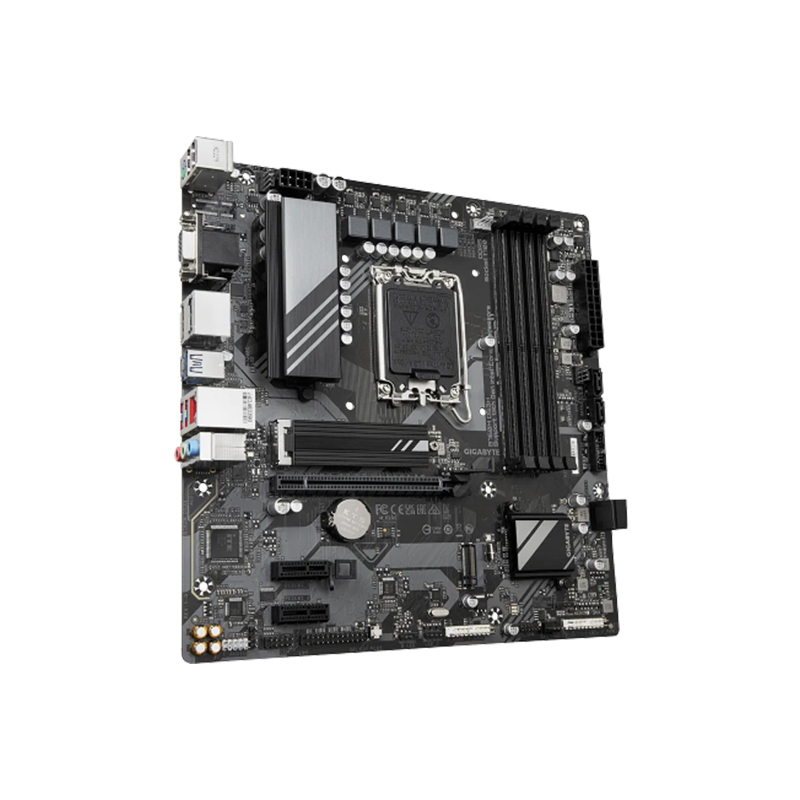

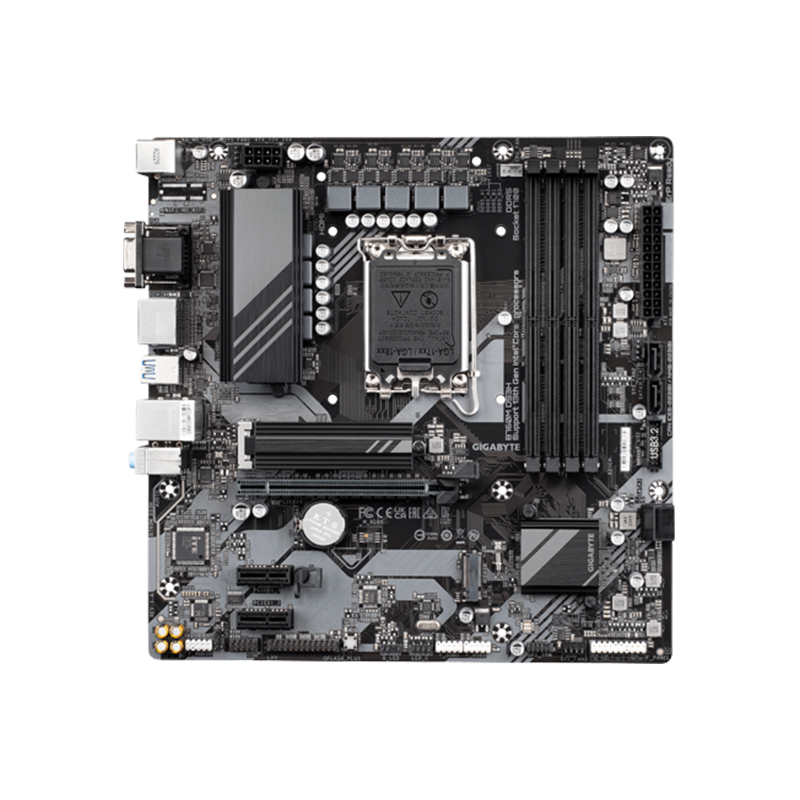

Gigabyte B760M DS3H DDR5 Intel-Chip Motherboard
Original price was: 18,000.00৳ .17,500.00৳ Current price is: 17,500.00৳ .
- Chipset: B760 Express
- Memory: DDR5 Dual channel
- BIOS: 128 Mbit flash
- CPU: LGA1700 socket
| Supported CPU | LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors
L3 Cache Varies With CPU |
| Chipset | Intel® B760 Express Chipset |
| BIOS | 1 X 128 Mbit Flash
Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor |
| Audio | Realtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out |
| Graphics | 1 X D-Sub Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz Km
1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version. |
| Type | Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) /
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Slots | 4 |
| HDMI | 1 X HDMI Port |
| USB (s) | Chipset:
1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+2 USB 2.0 Hubs: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
| LAN Port (s) | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| LAN Chipset | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Others | I/O Controller: ITE® I/O Controller Chip
H/W Monitoring: Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control |
| Manufacturing Warranty | 03 Years Warranty |
Gigabyte B760M DS3H DDR5 Intel-Chip Motherboard
The GIGABYTE B760M DS3H DDR5 motherboard is engineered to accommodate the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors through its LGA1700 socket. It is equipped with the Intel B760 Express Chipset and is compatible with DDR5 memory modules that offer speeds from 4800 MT/s to 7600 MT/s. This motherboard features four DDR5 DIMM sockets with a maximum capacity of 192 GB of system memory in dual channel architecture. Additionally, it provides integrated graphics support with various display options like D-Sub, HDMI, and DisplayPort. The audio system is powered by a Realtek Audio CODEC, delivering high definition audio with support for different channel configurations. In terms of connectivity, it includes a Realtek 2.5GbE LAN chip and USB ports, including a USB Type-C port with USB 3.2 Gen 2 support. Storage options consist of M.2 connectors and SATA 6Gb/s connectors with RAID support. This Micro ATX form factor motherboard is accompanied by a 3-year warranty. Bangladesh’s premier retailer of computer hardware and applications is known for its exceptional client support. Their team of knowledgeable and friendly staff is always ready to assist customers. The extensive range of Gigabyte Motherboards available at this retailer is highly regarded.
What Is The Price Of Gigabyte B760M DS3H DDR5 Intel-Chip Motherboard In Bangladesh?
The Gigabyte B760M DS3H DDR5 Intel-Chip Motherboard current price in Bangladesh is 17,500৳. Buy the Gigabyte B760M from our website or visit one of our showrooms for the best price.
