Gigabyte H410M H V2 Intel-Chip Motherboard
Click to enlarge
Gigabyte H410M H V2 Intel-Chip Motherboard
GIGABYTE

Gigabyte H410M H V2 Intel-Chip Motherboard

Original price was: 9,500.00৳ .Current price is: 9,000.00৳ .

  • Model: H410M H V2
  • Memory Max. – 64GB
  • Memory Slot – 2
  • Sockets Supported – LGA1200
  • Supported CPU – Intel Core i9, i7, i5, i3, Pentium, Celeron processors
  • Generation – 10th



Add to compare
Add to wishlist
Categories: ,
Product Specifications
Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset Intel H470 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor: 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
CPU
Chipset Brand Intel
Chipset Intel H470
Supported Sockets LGA1200
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Memory
Type DDR4
Slots 2
Supported Memory Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB
Memory MHz 3200/ 2933/ 2666/ 2400/ 2133 MHz
Storage
Storage Interface 6.0Gb/s
SSD Expansion Slot 1
Expansion Slots
M.2 Socket 1 x M.2, type 2242/2260/2280 SATA and PCIe x4/x2 SSD

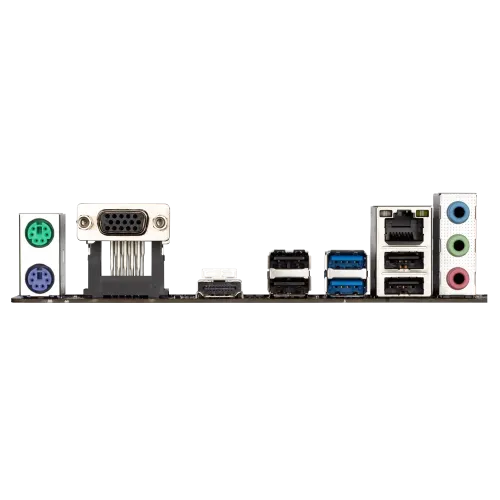

Connector & Ports
HDMI 1 x HDMI port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) 1
Network & Connectivity
LAN Chipset Intel GbE LAN
LAN Speed (Mbps) 10/100/1000 Mb/s
WiFi No
WiFi Technology No
Bluetooth No
Additional Info
Country Of Origin Taiwan
Made In/ Assemble China
Others HDMI version: 1.4 and HDCP version: 2.3, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x RJ-45 port, 3 x audio jacks
Warranty Information
Manufacturing Warranty 3 Year
