Sale
JINGSHA B365M Intel Chip DDR4 Motherboard
Original price was: 8,200.00৳ .7,500.00৳ Current price is: 7,500.00৳ .
- Brand: JINGSHA
- Model: B365M
- CPU: 9th and 8th Generation Intel Processors
- Chipset: Intel B365M
- 2x M.2 NVMe Slot
- 4x SATA Slot
Product Specifications
Basic Information
| Supported CPU |
Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
Also Support 6th & 7th Gen Motherboard |
| Chipset | Intel B365 Express Chipset |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX 223mm* 170mm |
| Audio | Realtek High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
CPU
| Chipset Brand | Intel |
| Supported Sockets | LGA1151 |
Memory
| Type | Dual channel DDR4 memory architecture |
| Slots |
2 x DDR4 DIMM
|
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor. |
| Maximum Memory | Max. capacity of system memory 32GB |
Storage
| Storage Interface |
4x SATA 6Gb/s ports
|
Expansion Slots
| PCI | 1x PCI - E 3.0 |
| M.2 Socket | 2x PCIe M.2 NVMe Gen 3.0 |

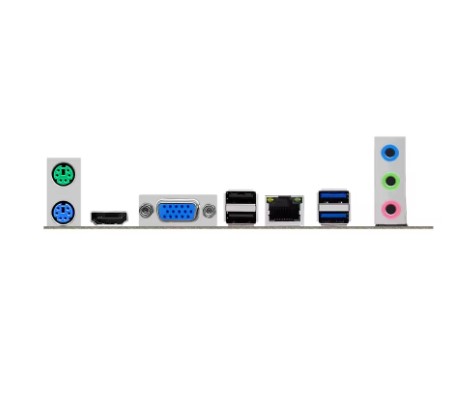

Connector & Ports
| HDMI | 1 X HDMI Port; 1 X VGA Port |
| USB (s) | 2 x USB 3.0 Port 2 x USB 2.0 Port 2x PS2 Port |
| LAN Port (s) | Hi-Speed Realtek LAN Port |
| Audio | Realtek High Definition on board, Supports 6-channel audio-out |
Network & Connectivity
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | Realtek |
Additional Info
| Country Of Origin | Mainland |
| Made In/ Assemble | China |
Warranty Information
| Manufacturing Warranty | 03 Years |
Description
JINGSHA B365M Intel Chip DDR4 Motherboard
Upgrade your PC performance with the JINGSHA B365M DDR4 Motherboard, designed for Intel processors and built to handle demanding tasks with stability and speed. This micro-ATX board supports Intel 8th and 9th Gen CPUs, offers dual-channel DDR4 RAM support up to 64GB, and features PCIe x16 graphics card slot for enhanced visual performance. Ideal for gaming, office productivity, or custom workstation builds, the JINGSHA B365M ensures a smooth and efficient computing experience.
Key Features:
- Chipset: Intel B365
- Form Factor: Micro-ATX
- CPU Support: Intel 8th/9th Gen Core i3/i5/i7/i9, Pentium, Celeron
- RAM Support: 2× DDR4 DIMM slots, up to 64GB
- Storage: SATA 3.0 & M.2 NVMe SSD support
- Expansion Slots: PCIe x16 for GPU, PCIe x1 for add-on cards
- I/O Ports: USB 3.0, USB 2.0, HDMI, VGA, LAN, Audio
- Durable capacitors and power-efficient design
- Perfect for budget-friendly yet powerful PC builds in Bangladesh.
What Is The Price Of JINGSHA B365M Intel Chip DDR4 Motherboard In Bangladesh?
The JINGSHA B365M Intel Chip DDR4 Motherboard current price in Bangladesh is 7,500৳. Buy the JINGSHA B365M DDR4 Motherboard from our website or visit one of our showrooms for the best price.
