MSI B560M Pro E Intel-Chip Motherboard
Original price was: 11,000.00৳ .10,500.00৳ Current price is: 10,500.00৳ .
- Model: B560M PRO-E
- Memory Max. – 64GB
- Memory Slot – 2
- Sockets Supported – LGA1200
- Supported CPU – Intel Core, Pentium Gold, Celeron Processors
- Generation – 10th/11th
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1200 |
| Chipset | Intel B560 chipset |
| BIOS | 1x 256 Mb flash
UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Form Factor | mATX Form Factor
9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | 1x Front panel audio connector |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Supported Sockets | LGA1200 |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Up to 64GB |
| Memory MHz | 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) |
| Storage Interface | 6.0Gb/s |
| SSD Expansion Slot | 1 |
| M.2 Socket | 1 x M.2 Gen3 x4 slot |
| HDMI | 1 |
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports, 6x USB 2.0 ports. |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| LAN Chipset | 1 x Intel I219V 1Gbps LAN controller |
| LAN Speed (Mbps) | 10 / 100 / 1000Mbps |
| WiFi | NO |
| WiFi Technology | NO |
| Bluetooth | NO |
| Country Of Origin | Taiwan |
| Made In/ Assemble | China |
| Manufacturing Warranty | Taiwan |
| Warranty | 3 YEARS |
MSI B560M Pro E Intel-Chip Motherboard

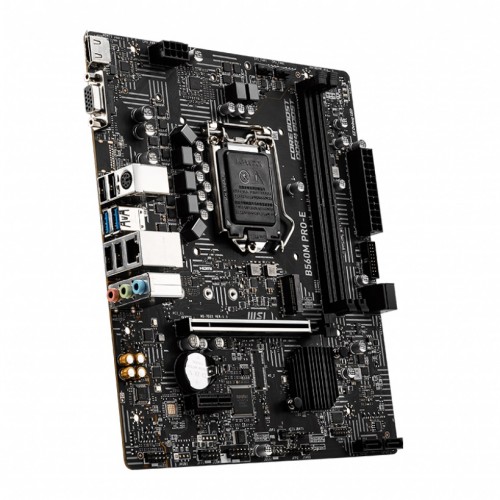

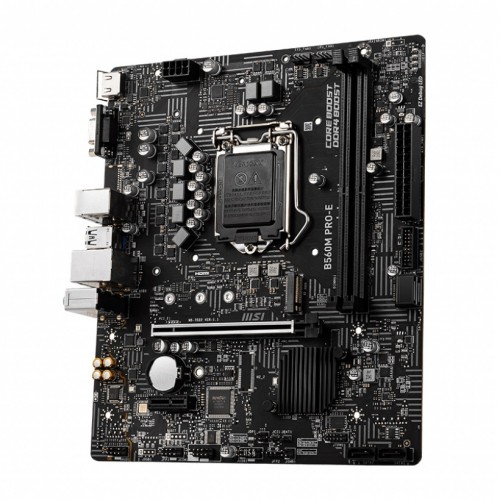

The MSI B560M PRO-E Motherboard, the newest addition to the MSI PRO series, is compatible with 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1200 socket. It supports DDR4 Memory with speeds of up to 4800(OC) MHz. This motherboard is equipped with Core Boost, featuring a premium layout and digital power design to enhance performance and support more cores. Advanced technology is utilized to ensure the delivery of pure data signals, resulting in optimal performance and stability. The motherboard also features PCIe 4.0 and Lightning Gen3 x4 M.2 with M.2 Shield Frozr, providing a lightning-fast experience. With 2.5G LAN, you can upgrade your network solution for professional and multimedia use, enjoying a secure, stable, and fast network connection. Additionally, Audio Boost delivers studio-grade sound quality for an immersive audio experience. The Steel Armor feature protects VGA cards against bending, enhancing performance, stability, and strength. The MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard comes with a 3-year warranty, ensuring peace of mind for its users.
What Is The Price Of MSI B560M Pro E Intel-Chip Motherboard In Bangladesh?
The MSI B560M Pro E Intel-Chip Motherboard current price in Bangladesh is 10,500৳. Buy the MSI B560M from our website or visit one of our showrooms for the best price.
